[RESOLVED] How can I "Float" a listview column header to the right?

I have a listview box that contains 2 column headers "File Name" & "File Type". I have my form set to allow you to grow and shrink to the right. The listview grows and shrinks with it to the right. By default I have the columns populated using this code:

Code:

---

        ListView1.View = View.Details
        ' Add a column with width 80 and left alignment
        ListView1.Columns.Add("File Name", 306, HorizontalAlignment.Left)
        ListView1.Columns.Add("File Type", 70, HorizontalAlignment.Right)
        'ListView1.Columns.Add("Date Modified", 150, HorizontalAlignment.Left)

---

I tried to set the alignment to the right for column 2 but I see no difference. I have read a few other posts but I do not understand gridviews since I am new to programming. Most of my code is built around the listview so I would really like to find a solution to this using the listview controls options.

Thanks in advance.

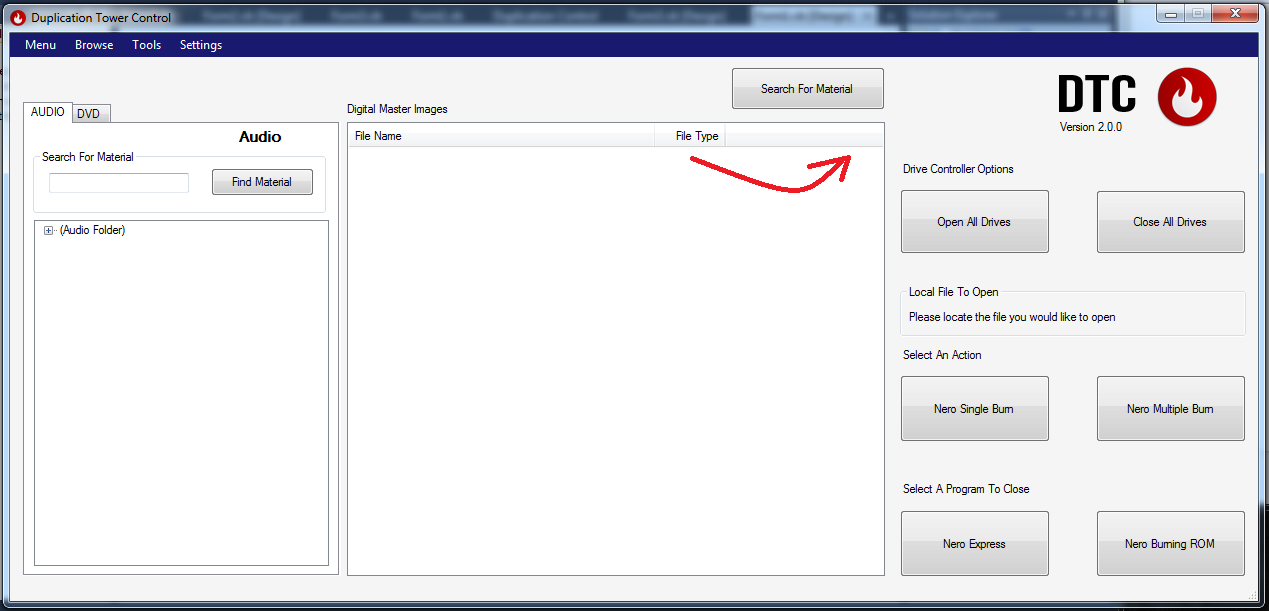

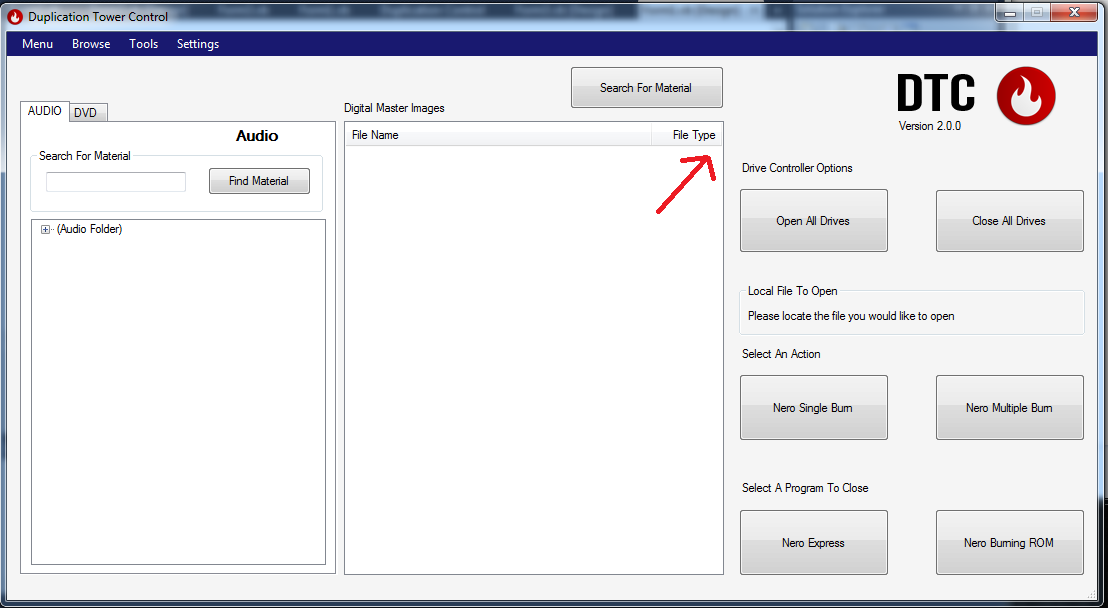

Attachment 101381Attachment 101383

Hi,

If what you are trying to do is to set the final column in the ListView to occupy the remaining space within the ListView Header then you can use the special ListView Header Width Value of "-2" to do this. i.e:-

Code:

---

Dim colHeaders() As ColumnHeader = {New ColumnHeader With {.Text = "Col1", .Width = 100, .TextAlign = HorizontalAlignment.Left},
                                  New ColumnHeader With {.Text = "Col2", .Width = -2, .TextAlign = HorizontalAlignment.Right}}
ListView1.Columns.AddRange(colHeaders)

---

Hope that helps.

Cheers,

Ian

@ Ian

The add range code you provided worked great as far as distinguishing the second column to be placed to the right most position of the listbox. This is partially what I was trying to figure out.

The whole reason I want this is because some of the items in the listbox have long file names which cause the listbox to become scrollable. I'd rather have the user just widen the form to view the rest of the file name.

So my next question would be, when the user widens the form via size-grip to view the rest of the file name that is cut off, is there a way to refresh the columns so "col2" stays to the right. Basically, as the form size widens I want col2 to stick to the right while col1 widens with the form. Here is your code adjusted to how I am using it:

Code:

---

      Dim colHeaders() As ColumnHeader = {New ColumnHeader With {.Text = "File Name", .Width = 306, .TextAlign = HorizontalAlignment.Left},
                                  New ColumnHeader With {.Text = "File Type", .Width = -2, .TextAlign = HorizontalAlignment.Right}}
        ListView1.Columns.AddRange(colHeaders)

---

Hi,

Easy done. All you need to do is code the Form Resize event to remove the existing Headers of the ListView and then re-add them. i.e:-

Code:

---

Private Sub AddLVHeaders()
  Dim colHeaders() As ColumnHeader = {New ColumnHeader With {.Text = "Col1", .Width = 100, .TextAlign = HorizontalAlignment.Left},
                                        New ColumnHeader With {.Text = "Col2", .Width = -2, .TextAlign = HorizontalAlignment.Right}}
  ListView1.Columns.Clear()
  ListView1.Columns.AddRange(colHeaders)
End Sub

Private Sub Form1_Resize(sender As Object, e As System.EventArgs) Handles Me.Resize
  AddLVHeaders()
End Sub

---

That should solve the issue for you.

Cheers,

Ian

Hi,

Actually, re-reading your last post, to keep column 1 a variable size in relation to the width of the ListView with column 2 justified to the right you could say:-

Code:

---

Private Sub AddLVHeaders()
  Dim colHeaders() As ColumnHeader = {New ColumnHeader With {.Text = "Col1", .Width = CInt(ListView1.Width * 0.75), .TextAlign = HorizontalAlignment.Left},
                                        New ColumnHeader With {.Text = "Col2", .Width = -2, .TextAlign = HorizontalAlignment.Right}}
  ListView1.Columns.Clear()
  ListView1.Columns.AddRange(colHeaders)
End Sub

---

This ensures that column 1 stays a fixed 75% of the width of the ListView and column 2 is justified to the remaining space on the right when the Form is resized.

Cheers,

Ian

@ Ian

Using the form re-size event worked perfectly. I ran into a small hiccup with col1. As the form widened col1 did not expand to reveal the rest of it's value. I corrected this but setting it's width to -1 (width of widest value). This caused it to look goofy however when it's value was 0. To correct this I just added an If statement stating that when listview items count is equal to 0/nothing that the columns be set to a numeric value rather than -1 & -2.

Code:

---

    Private Sub AddLVHeaders()
        Dim colHeaders() As ColumnHeader = {New ColumnHeader With {.Text = "File Name", .Width = -1, .TextAlign = HorizontalAlignment.Left},
                                            New ColumnHeader With {.Text = "File Type", .Width = -2, .TextAlign = HorizontalAlignment.Right}}
        ListView1.Columns.Clear()
        ListView1.Columns.AddRange(colHeaders)

        If ListView1.Items.Count = 0 Then
            Dim colHeaders_alt() As ColumnHeader = {New ColumnHeader With {.Text = "File Name", .Width = 306, .TextAlign = HorizontalAlignment.Left},
                                    New ColumnHeader With {.Text = "File Type", .Width = -2, .TextAlign = HorizontalAlignment.Right}}
            ListView1.Columns.Clear()
            ListView1.Columns.AddRange(colHeaders_alt)
        End If

    End Sub
    Private Sub Form1_Resize(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Resize
        AddLVHeaders()
    End Sub

---

Thank you again Ian

Resolved
