Multi Item Property

Hi there

Id like to know you create a property Group for forms and user controls. just like you would get for size, margin, padding etc

my aim (for now at least) is to be able have a borders property consisting of left, right, top,bottom. All values would be an Integer.

I could just create 4 single properties but id would much prefer to group them under like borders or something.
Ive had a bit of a look around and i think i have to create a class with the properties set within that class and then set the property on the object as that class.
any way ive tried all that and i can't get it to come out on my form properties at all, worse than that when i just added a new one to the form the properties window was blank and visual studio crashed :/

Even If I'm missing some fundamentally much easier way to achieve my goal of the borders, I'd still like to know how to do the property group as it'll probably come in handy

please note value are currently in boolean as that was the original idea but writing this i decided that integer would give me much more functionality in fact i might even go for palet color and default it to transparent or something who knows

any way here is my class

Code:

---

Public Class ClsPnlBorders
    Private mRight As Boolean
    Public Property Right As Boolean
        Get
            Return mRight
        End Get
        Set(value As Boolean)
            mRight = value
            RaiseEvent BordersChanged()
        End Set
    End Property
    Private mLeft As Boolean
    Public Property Left As Boolean
        Get
            Return mLeft
        End Get
        Set(value As Boolean)
            mLeft = value
            RaiseEvent BordersChanged()
        End Set
    End Property
    Private mTop As Boolean
    Public Property Top As Boolean
        Get
            Return mTop
        End Get
        Set(value As Boolean)
            mTop = value
            RaiseEvent BordersChanged()
        End Set
    End Property
    Private mBottom As Boolean
    Public Property Bottom As Boolean
        Get
            Return mBottom
        End Get
        Set(value As Boolean)
            mBottom = value
            RaiseEvent BordersChanged()
        End Set
    End Property
    Public Sub New(right As Boolean, left As Boolean, top As Boolean, bottom As Boolean)
        mRight = right
        mLeft = left
        mTop = top
        mBottom = bottom
    End Sub
    Public Event BordersChanged()

End Class

---

and my usage

Code:

---

Private mBorders() As ClsPnlBorders
    <TypeConverter(GetType(ExpandableObjectConverter)), DesignerSerializationVisibility(DesignerSerializationVisibility.Content)> _
    Public Property Borders() As ClsPnlBorders
        Get
            Return mBorders(0)
        End Get
        Set(value As ClsPnlBorders)
            mBorders(0) = value
        End Set
End Property

---

many thanks

Ian

Why you declare as array?

vb Code:

Private mBorders As ClsPnlBorders
    <TypeConverter(GetType(ExpandableObjectConverter)), DesignerSerializationVisibility(DesignerSerializationVisibility.Content)> _
    Public Property Borders() As ClsPnlBorders
        Get
            Return mBorders
        End Get
        Set(value As ClsPnlBorders)
            mBorders = value
        End Set
End Property

BTW: .NET has System.Drawing.Rectangle try to use it.

hi 4x2y

thanks for the reply,

I Tried using a rectangle but i could get it to only show the sides that i wanted it right, top, bottom or left, it was either on or of

And im not sure why i declared it as an array to be honest, i was trying to follow what someone else had done from in this post
http://www.vbforums.com/showthread.p...oup-Attributes

but i couldn't get it work, its a bit annoying because i can see it as i wold expect it. if i call it in the code but it doesn't appear in the properties window

Ian

There is already a type for specifying borders. The ToolStripStatusLabelBorderSides enumeration type. It also has nice designer support where you can specify them with CheckBoxes in the property grid at design time:-

vbnet Code:

Public Class Test
    Inherits Component

    Public Property Borders As ToolStripStatusLabelBorderSides

End Class

All you need to do is have the property declared as ToolStripStatusLabelBorderSides and VS does the rest.

As i understood, he wants to add his custom property Borders to a form and see/set it inside the form's properties window at design time.

He can inherit from Form and add the property if he wants.

Quote:

---

He can inherit from Form and add the property if he wants.

---

Can you please post a sample, because i did so but cannot see it in the form's properties window at design time.

vbnet Code:

Public Class SpecialForm
    Inherits Form

    Public Property MyBorders As ToolStripStatusLabelBorderSides
End Class

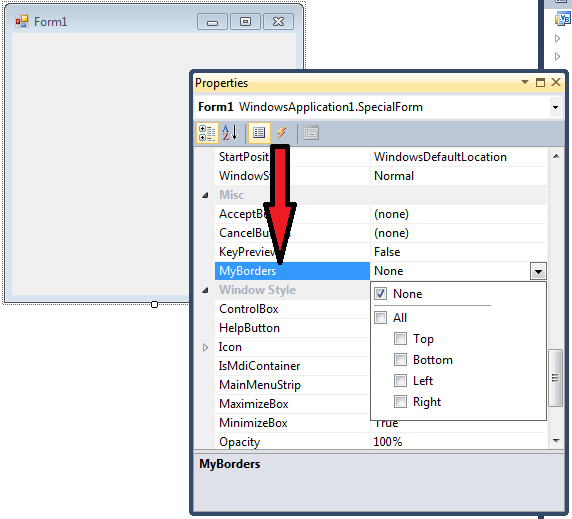

Attachment 100069

When i create a class with this code

Code:

---

Public Class SpecialForm
    Inherits Form

    Public Property MyBorders As ToolStripStatusLabelBorderSides
End Class

---

i don't see MyBorders in the properties window.

I see only if i add another class and inherit SpecialForm

Code:

---

Public Class Class2
    Inherits WindowsApplication1.SpecialForm

End Class

---

Quote:

---

Originally Posted by 4x2y

I see only if i add another class and inherit SpecialForm

Code:

---

Public Class Class2
    Inherits WindowsApplication1.SpecialForm

End Class

---

---

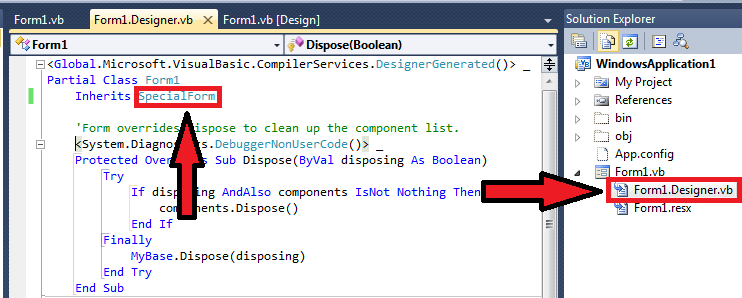

Right, that's exactly what you're supposed to do. You simply edit the designer generated file for your application's forms and have it inherit from your new form class instead of the default System.Windows.Forms.Form.

Attachment 100095

Quote:

---

You simply edit the designer generated file for your application's forms and have it inherit from your new form class instead of the default System.Windows.Forms.Form.

---

I think it was important to describe this step, because i knew it only from your properties window screen shoot, as it show the class name Form1 WindowsApllication1.SpecialForm

Attachment 100091 is Invalid Attachment.

Quote:

---

Originally Posted by 4x2y

I think it was important to describe this step.

---

Sorry about that. I assumed it was common knowledge. I use all kinds of inherited forms all the time.

Quote:

---

Originally Posted by 4x2y

Attachment 100091 is Invalid Attachment.

---

Fixed...;)

Wow Thanks alot guys thats brill

the problem is this is more for user controls rather than forms

I want to use this mainly in my version of the Panel, The Idea being that i could choose what sort of a border that wanted in the panel. can i use the Inherits WindowsApplication.SpecialForm When im already inheriting the base class of the Panel?

but i would imagine it would be of use in all sorts of places.

Lastly Whilst the suggestion for the borders is very good, Id still like to know how to create my own Multi Item Properties. it may be that it is more trouble than its worth but if it is possible it would be great to know

Ian

Quote:

---

Originally Posted by 12many

Lastly Whilst the suggestion for the borders is very good, Id still like to know how to create my own Multi Item Properties. it may be that it is more trouble than its worth but if it is possible it would be great to know

Ian

---

vbnet Code:

Imports System.ComponentModel

Public Class BorderedPanel
    Inherits Panel

    Public Sub New()
        Me.Borders = New BorderSides
    End Sub

    <DesignerSerializationVisibility(DesignerSerializationVisibility.Content)> _
    Public Property Borders As BorderSides

End Class


<TypeConverter(GetType(BorderSidesConverter))> _
Public Class BorderSides
    Public Property Left As Boolean
    Public Property Top As Boolean
    Public Property Right As Boolean
    Public Property Bottom As Boolean
End Class

Public Class BorderSidesConverter
    Inherits ExpandableObjectConverter

    Public Overrides Function CanConvertTo(context As System.ComponentModel.ITypeDescriptorContext, destinationType As System.Type) As Boolean
        If GetType(String) Is destinationType Then Return True

        Return MyBase.CanConvertTo(context, destinationType)
    End Function

    Public Overrides Function ConvertTo(context As System.ComponentModel.ITypeDescriptorContext, culture As System.Globalization.CultureInfo, value As Object, destinationType As System.Type) As Object
        If GetType(String) Is destinationType Then Return ""

        Return MyBase.ConvertTo(context, culture, value, destinationType)
    End Function

End Class
