[RESOLVED] VS2012 - Add Depth to Form Background

I have an MDI application with controls situated on the outer edges of the Parent. Only one MdiChild is opened at a time and is set to DockStyle.Fill in the center of the Parent.

I understand how gradients work when painting backgrounds, but the resulting display always appears to be flat and without character. I want to add depth to the Child forms so that their controls appear to be actual objects. I hope that is a clear description of my intent.

How can I paint the background of a Child form to add depth without taking longer to paint than a standard gradient would?

Thanks in advance for any comments or suggestions.

Hi Circuits,

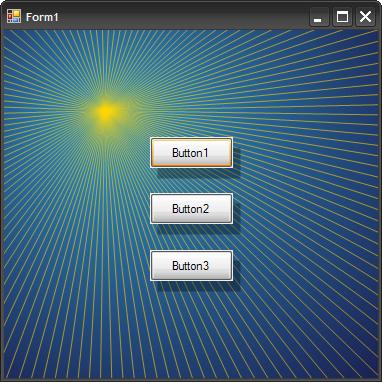

Here's an example to illustrate a few possibilities in GDI+. Is it the kind of thing you have in mind? If not, an example or a sketch from you would help. I admit I've gone to town a bit especially with those radial lines:).

Attachment 96789

Here's the code I used to generate it:

Code:

---

Public Class Form1

        Private Sub Form1_Load(sender As System.Object, e As System.EventArgs) Handles MyBase.Load
                Me.DoubleBuffered = True
        End Sub

        Private Sub Form1_Resize(sender As Object, e As System.EventArgs) Handles Me.Resize
                Me.Invalidate()
        End Sub

        Private Sub Form1_Paint(sender As Object, e As System.Windows.Forms.PaintEventArgs) Handles Me.Paint
                Dim gradientFocus As New PointF(100, 80)

                Using gp As New Drawing2D.GraphicsPath

                        'Draw radial gradient
                        Dim r As Rectangle = Me.ClientRectangle
                        r.Inflate(r.Width \ 2, r.Height \ 2)
                        gp.AddEllipse(r)
                        gp.Flatten(Nothing, 0.25)
                        Dim clrs As New List(Of Color)
                        For Each pp In gp.PathPoints
                                clrs.Add(Color.FromArgb(20, 0, 50))
                        Next
                        Using pgb As New Drawing2D.PathGradientBrush(gp)
                                pgb.CenterPoint = gradientFocus
                                pgb.CenterColor = Color.FromArgb(50, 150, 200)
                                pgb.SurroundColors = clrs.ToArray
                                e.Graphics.FillRectangle(pgb, Me.ClientRectangle)
                        End Using

                        'Draw radial lines
                        e.Graphics.SmoothingMode = Drawing2D.SmoothingMode.HighQuality
                        For i As Integer = 0 To gp.PointCount - 2
                                Using pn As New Pen(Color.FromArgb(150, Color.Gold), 1)
                                        e.Graphics.DrawLine(pn, gradientFocus, gp.PathPoints(i))
                                End Using
                        Next

                End Using

                'Draw drop shadows for all controls:
                For Each ctrl As Control In Me.Controls
                        Dim r As Rectangle = ctrl.Bounds
                        r.Offset(7, 10)
                        Using sbr As New SolidBrush(Color.FromArgb(80, Color.Black))
                                e.Graphics.FillRectangle(sbr, r)
                        End Using
                Next

        End Sub

End Class

---

More complicated code doesn't necessarily translate directly into slower paint times. Drawing those radial lines takes a little time but double buffering the form helps; try drag-resizing the form to see. The drop shadows are easy to code and quick to paint.

BB

Ooh, pretty! Those shadows are really effective and so simple! Why didn't I think of that? Just grab that for the code snippets then! :cool:

That's exactly what I was looking for boops! Radials and drop shadows give me the depth I wanted. Thank you!

Quote:

---

Originally Posted by boops boops

Hi Circuits,

Here's an example to illustrate a few possibilities in GDI+. Is it the kind of thing you have in mind? If not, an example or a sketch from you would help. I admit I've gone to town a bit especially with those radial lines:).

Attachment 96789

Here's the code I used to generate it:

Code:

---

Public Class Form1

        Private Sub Form1_Load(sender As System.Object, e As System.EventArgs) Handles MyBase.Load
                Me.DoubleBuffered = True
        End Sub

        Private Sub Form1_Resize(sender As Object, e As System.EventArgs) Handles Me.Resize
                Me.Invalidate()
        End Sub

        Private Sub Form1_Paint(sender As Object, e As System.Windows.Forms.PaintEventArgs) Handles Me.Paint
                Dim gradientFocus As New PointF(100, 80)

                Using gp As New Drawing2D.GraphicsPath

                        'Draw radial gradient
                        Dim r As Rectangle = Me.ClientRectangle
                        r.Inflate(r.Width \ 2, r.Height \ 2)
                        gp.AddEllipse(r)
                        gp.Flatten(Nothing, 0.25)
                        Dim clrs As New List(Of Color)
                        For Each pp In gp.PathPoints
                                clrs.Add(Color.FromArgb(20, 0, 50))
                        Next
                        Using pgb As New Drawing2D.PathGradientBrush(gp)
                                pgb.CenterPoint = gradientFocus
                                pgb.CenterColor = Color.FromArgb(50, 150, 200)
                                pgb.SurroundColors = clrs.ToArray
                                e.Graphics.FillRectangle(pgb, Me.ClientRectangle)
                        End Using

                        'Draw radial lines
                        e.Graphics.SmoothingMode = Drawing2D.SmoothingMode.HighQuality
                        For i As Integer = 0 To gp.PointCount - 2
                                Using pn As New Pen(Color.FromArgb(150, Color.Gold), 1)
                                        e.Graphics.DrawLine(pn, gradientFocus, gp.PathPoints(i))
                                End Using
                        Next

                End Using

                'Draw drop shadows for all controls:
                For Each ctrl As Control In Me.Controls
                        Dim r As Rectangle = ctrl.Bounds
                        r.Offset(7, 10)
                        Using sbr As New SolidBrush(Color.FromArgb(80, Color.Black))
                                e.Graphics.FillRectangle(sbr, r)
                        End Using
                Next

        End Sub

End Class

---

More complicated code doesn't necessarily translate directly into slower paint times. Drawing those radial lines takes a little time but double buffering the form helps; try drag-resizing the form to see. The drop shadows are easy to code and quick to paint.

BB

---

Well, this is really cool! I'll be spending a couple of hours having fun tweaking your code.

Kudos boops! :thumb:
