Application is... Stalling???

My program reads data coming in from a serial port, this data includes battery voltages, and a load cell reading. If the "logging" button has been activated, then it should place some of this data in the chart below the graph (the graph is update regardless). For some reason, once I added the battery voltages, I can not get the graph and chart to update at the same time. If I stop the logging, then the graph runs fine, if I start the logging it starts to slow down and the program barely runs?

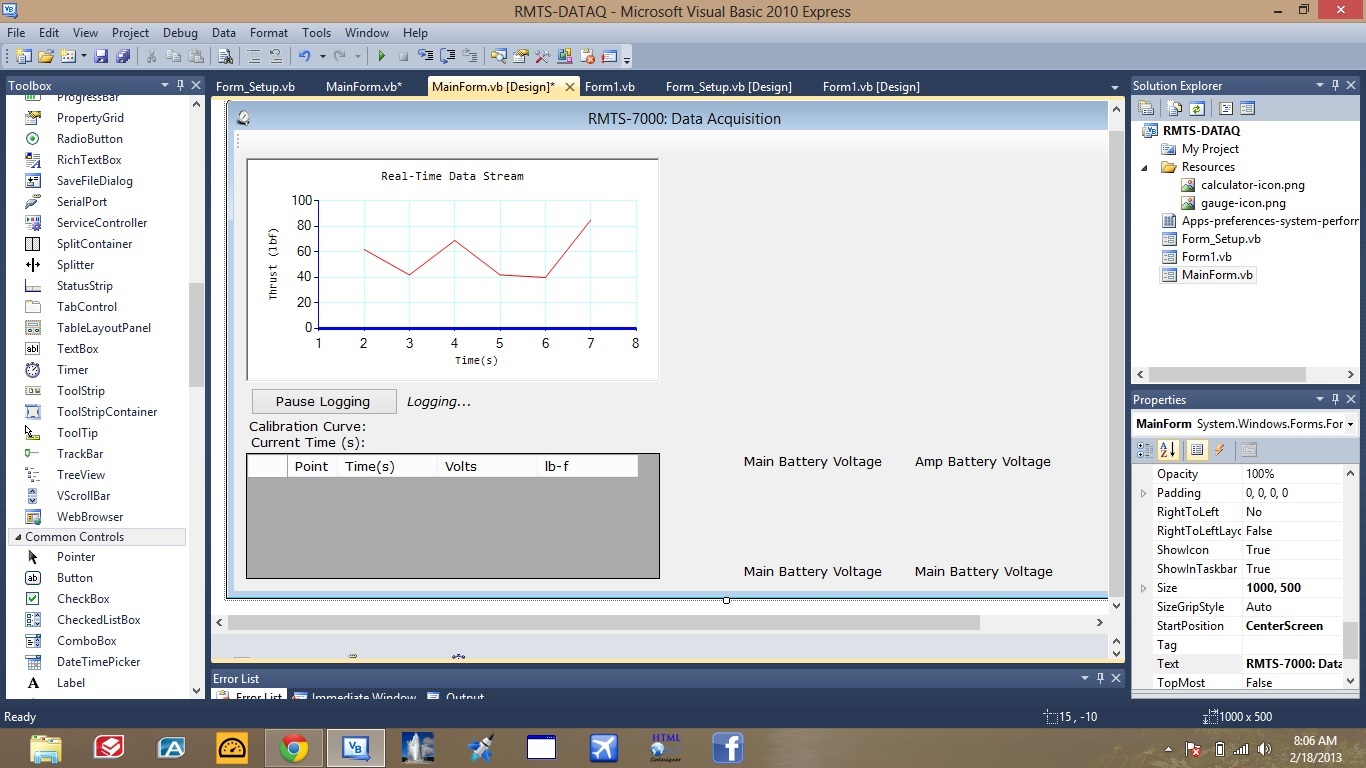

Screenshot below

Code:

Code:

---

Private Sub GetData()
        Try
            If InvokeRequired Then
                Me.Invoke(New MethodInvoker(AddressOf GetData))
            Else

                'get voltage data from loadcell, main batt, and ampbatt
                inputstring = SerialPort1.ReadLine

                loadcell = Val(inputstring.Substring(0, 4)) / 1024 * 10
                inForce = (loadcell - zerovalue) * forcescale
                Datachart.Series("DataSeries").Points.AddXY(Timer.Elapsed.TotalSeconds, inForce)
                Datachart.ChartAreas(0).AxisX.Minimum = Datachart.ChartAreas(0).AxisX.Maximum - 5
                SerialPort1.Write("1")

                If logging = 1 Then
                    DataGrid.RowCount = DataGrid.RowCount + 1
                    row = DataGrid.RowCount - 1
                    DataGrid.Rows(row).Cells(1).Value = Math.Round(Timer.Elapsed.TotalSeconds, 4)
                    DataGrid.Rows(row).Cells(2).Value = Math.Round(loadcell, 4)
                    DataGrid.Rows(row).Cells(3).Value = Math.Round(inForce, 4)
                    If Not DataGrid.Rows(row).Displayed Then
                        DataGrid.FirstDisplayedScrollingRowIndex = row - 2
                    End If
                End If

                Try
                    mainbatt = Val(inputstring.Substring(4, 4)) / 1024 * 10
                    ampbatt = Val(inputstring.Substring(8, 4)) / 1024 * 10
                    Label_AmpBatt.Text = Math.Round(ampbatt, 3).ToString + "V"
                    Label_MainBatt.Text = Math.Round(mainbatt, 3).ToString + "V"
                Catch ex As Exception

                End Try

                End If
        Catch ex As Exception

        End Try

    End Sub

---

Care to help?
Thanks!
Ryan

Attachment 96609

Is this the same GetData that is the DataReceived event handler? Which part of this is logging? If this is real-time data acquisition you should separate the Serial port reads / writes from the UI updating.

Yes, same GetData... Was not sure how to separate them... Told you I'd be back soon lol...

By "logging" all its doing is storing the voltage, time, and force values into the DataGrid...

How often do you have a line arriving? How many rows in the datagrid?

One thing you should do is change the method signature to

Code:

---

    Private Sub GetData(sender As Object, e As IO.Ports.SerialDataReceivedEventArgs)

---

Line arrives 50/s, rows are added as needed...

Quote:

---

Originally Posted by rpmaurer

Line arrives 50/s, rows are added as needed...

---

So as a test just have one row and overwrite the data as it comes in.

It runs fine then... so get rid of that loop?

Quote:

---

Originally Posted by rpmaurer

It runs fine then... so get rid of that loop?

---

Well I don't think you can add rows indefinitely.

Hmmm, what if I added... 500? Then when those got used up, add 500 more?

Quote:

---

Originally Posted by rpmaurer

Hmmm, what if I added... 500? Then when those got used up, add 500 more?

---

Check the count of rows before adding new rows. If the count is > 500, delete row 0, then add new row. Try that.

So here is an example of how I would approach this, based on what I know.

Code:

---

Public Class Form1

    Private WithEvents aTimer As New Windows.Forms.Timer

    Private Sub Form1_Shown(sender As Object, e As EventArgs) Handles Me.Shown
        aTimer.Interval = 10
        aTimer.Start()
        initSP()
    End Sub

    Private Sub initSP() 'initialize serial communication
        'add handler
        AddHandler SerialPort1.DataReceived, AddressOf GetData
        'change the following lines as needed
        Dim selectedport As String = "COM27"
        SerialPort1.DtrEnable = True
        SerialPort1.RtsEnable = True
        SerialPort1.BaudRate = 9600
        SerialPort1.PortName = selectedport
        SerialPort1.Open()
    End Sub

    Dim datastrm As New System.Text.StringBuilder
    Dim dataLock As New Object

    Private Sub GetData(sender As Object, e As IO.Ports.SerialDataReceivedEventArgs)
        'just read the bytes coming into the serial port
        Dim btr As Integer = Me.SerialPort1.BytesToRead
        Dim buf(btr - 1) As Byte
        SerialPort1.Read(buf, 0, btr)
        'add the bytes as a string to the data stream
        'the data stream is processed in a timer
        Threading.Monitor.Enter(dataLock)
        datastrm.Append(SerialPort1.Encoding.GetChars(buf, 0, btr))
        Threading.Monitor.Exit(dataLock)
    End Sub

    Private Sub aTimer_Tick(sender As Object, e As EventArgs) Handles aTimer.Tick
        aTimer.Enabled = False
        'this runs on the UI
        If datastrm.Length >= 8 Then
            Dim i As Integer = datastrm.ToString.IndexOf(ControlChars.CrLf) 'check for CR LF
            If i > 0 Then
                Threading.Monitor.Enter(dataLock)
                Dim inputstring As String = datastrm.ToString.Substring(0, i) 'same as inputstring = SerialPort1.ReadLine
                datastrm.Remove(0, i + ControlChars.CrLf.Length)
                Threading.Monitor.Exit(dataLock)

                'process the input string here

                Debug.Write(inputstring)
                Debug.WriteLine("")

                'SerialPort1.Write("1") 'do you need this???
            End If
        End If
        aTimer.Enabled = True
    End Sub
End Class

---

My concern with this is that datastrm would exceed memory if there is a lot of processing.
