Small desktop application. I need an experienced VB user to help me on a few points.

VB Project
Hi everyone,

I am a beginner in programming but have learned the basics over the past few weeks. I want to make a small desktop application for personal use in which I will be using a text-file database. I have been told this is as basic as it gets.

Overview
So the basic idea of this project is to create a digital version of my record collection (music vinyl). I aim to have a form in which I can essentially 'Add New Record' which has the following details:

- Title
- Artist
- Type
- Year
- Image

Once the details have been uploaded and the image retrieved from My Documents, I will click 'Add New' and this will save the details in the database. I also want this 'Add New' button to store the image in a variety of different forms depending on what 'Type' was selected. For example:

There are 4 types:

- 12" LP/EP
- 10" LP/EP
- 7" Single
- 12" Single

Each of the above will have its own section in the application where each record will be stored. In this section will be the image used when filling in the details in the 'Add New Record' page.

Then, I will be able to click on the picture of a record and will lead me to the final screen which shows me all the details of that particular record and the enlarged image.

The whole idea is to get all my record collection on, I have a lot of records and forget what I have. By having this application I will be able to see the front covers of each record and view the details of that record.

It would be a huge help if someone gave me guidance with this project. I don't think it is too challenging for someone who has experience with VB.

I already have the layout created on VB, just need help with the coding.

Thanks in advance for anyone who shows an interest.

Cheers!

Conor.

Quote:

---

I don't think it is too challenging for someone who has experience with VB.

---

Indeed it isn't. But you're not going to become one of those people if we simply do everything for you. If you want to use a database try one of the hundreds of perfectly adequate tutorials online and also use the extensive (though admittedly sometimes baffling!) help that comes with VB via MSDN. If you have code that doesn't seem to work for any reason then we'll only be too happy to guide you but you do the work, we only comment and correct where necessary.

Quote:

---

I don't think it is too challenging for someone who has experience with VB.

---

Indeed it isn't. But you're not going to become one of those people if we simply do everything for you. If you want to use a database try one of the hundreds of perfectly adequate tutorials online and also use the extensive (though admittedly sometimes baffling!) help that comes with VB via MSDN. If you have code that doesn't seem to work for any reason then we'll only be too happy to guide you but you do the work, we only comment and correct where necessary.

this may help. It's not a text file but a SQL Server Database. A text file may not be the easiest way.

Text files (flat files) are not the way to go (if you can avoid it). If you can use a local db, then do it. To me, you assignment sounds like a class assignment. Can you use a local db or sql db? Are you limited to a flat file? If you are, you may want to go with a structured flat file (e.g. xml).

i'd use a class (call it record), with public properties for:

- Title
- Artist
- Type
- Year
- Image

vb.net Code:

<System.Serializable()> Public Class record

    Private _Title As String
    Private _Artist As String
    Private _Type As String
    Private _Year As Integer
    Private _Image As Image

    Public Property Title() As String
        Get
            Return _Title
        End Get
        Set(ByVal value As String)
            _Title = value
        End Set
    End Property

    Public Property Artist() As String
        Get
            Return _Artist
        End Get
        Set(ByVal value As String)
            _Artist = value
        End Set
    End Property

    Public Property Type() As String
        Get
            Return _Type
        End Get
        Set(ByVal value As String)
            _Type = value
        End Set
    End Property

    Public Property Year() As Integer
        Get
            Return _Year
        End Get
        Set(ByVal value As Integer)
            _Year = value
        End Set
    End Property

    Public Property Image() As Image
        Get
            Return _Image
        End Get
        Set(ByVal value As Image)
            _Image = value
        End Set
    End Property

End Class

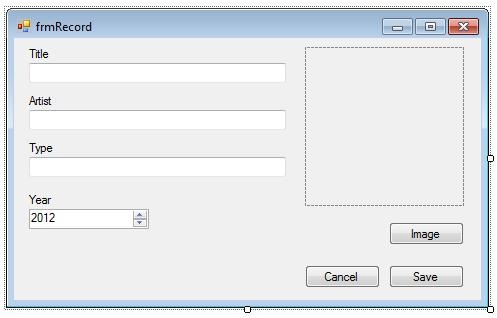

you need to create a dialog for adding new records, with 3 textboxes, a numericupdown, a picturebox + 3 buttons (see image).

Attachment 91079

note: the cancel button's dialogresult property is Cancel + the save button's dialogresult property is OK.


in the dialog form's sub new you'd load the controls from the instance of record passed in.
it could either be a new record, or you've reopened an existing record:

vb.net Code:

Public Class frmRecord

    Private _currentRecord As New record
    Public Property currentRecord() As record
        Get
            Return _currentRecord
        End Get
        Set(ByVal value As record)
            _currentRecord = value
        End Set
    End Property

    Public Sub New(ByVal r As record)
        InitializeComponent()

        TextBox1.Text = r.Title
        TextBox2.Text = r.Artist
        TextBox3.Text = r.Type
        NumericUpDown1.Value = If(r.Year <> 0, r.Year, Now.Year)
        PictureBox1.Image = r.Image

        currentRecord = r

    End Sub

    Private Sub TextBox1_TextChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles TextBox1.TextChanged
        currentRecord.Title = TextBox1.Text
    End Sub

    Private Sub TextBox2_TextChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles TextBox2.TextChanged
        currentRecord.Artist = TextBox2.Text
    End Sub

    Private Sub TextBox3_TextChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles TextBox3.TextChanged
        currentRecord.Type = TextBox3.Text
    End Sub

    Private Sub NumericUpDown1_ValueChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles NumericUpDown1.ValueChanged
        currentRecord.Year = CInt(NumericUpDown1.Value)
    End Sub

    Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
        'declare new OpenFileDialog + set it's initial properties
        Dim ofd As New OpenFileDialog With { _
        .Title = "Select image file", _
        .Filter = "BMP (*.bmp)|*.bmp|GIF (*.gif)|*.gif|JPG (*.jpg)|*.jpg|PNG (*.png)|*.png|All Files (*.*)|*.*", _
        .FilterIndex = 0, _
        .InitialDirectory = Environment.GetFolderPath(Environment.SpecialFolder.MyDocuments)}

        'show the dialog
        If ofd.ShowDialog = DialogResult.OK Then
            PictureBox1.Image = New Bitmap(ofd.FileName)
            currentRecord.Image = PictureBox1.Image
        End If

    End Sub

End Class

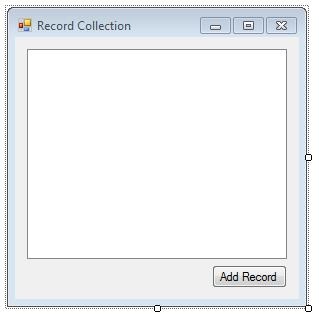

then in your main form a list(of record) + an add new record button, an imageList, + a listview setup for large icon.

Attachment 91081

in the button_click event, create a new instance of record class + a new instance of your add dialog form + pass the record variable
in the listview doubleclick, you'd open the selected item in the add new dialog.

at form_closed you'd serialize the list(of record) as binary, then in form_load you'd check if the binary file exists + if so, deserialize it back in to your list(of record)

vb.net Code:

Public Class Form1

    Dim records As New List(Of record)
    Dim iml As New ImageList

    Private Sub Form1_FormClosed(ByVal sender As Object, ByVal e As System.Windows.Forms.FormClosedEventArgs) Handles Me.FormClosed
        Dim formatter As New Runtime.Serialization.Formatters.Binary.BinaryFormatter
        Dim myWriter As New IO.FileStream("test.bin", IO.FileMode.Create)
        formatter.Serialize(myWriter, records)
        myWriter.Close()
    End Sub

    Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
        ListView1.LargeImageList = iml
        iml.ImageSize = New Size(64, 64)

        If IO.File.Exists("test.bin") Then
            Dim formatter As New Runtime.Serialization.Formatters.Binary.BinaryFormatter
            Dim fs As New IO.FileStream("test.bin", IO.FileMode.Open)
            records = DirectCast(formatter.Deserialize(fs), Global.System.Collections.Generic.List(Of record))
            fs.Close()

            For Each r In records
                iml.Images.Add("", New Bitmap(r.Image, 64, 64))
                Dim item As ListViewItem = ListView1.Items.Add(r.Artist & Environment.NewLine & r.Title, iml.Images.Count - 1)
                item.Tag = r
            Next

        End If
    End Sub

    Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
        Dim r As New record
        Dim frm As New frmRecord(r)
        If frm.ShowDialog = Windows.Forms.DialogResult.OK Then
            records.Add(frm.currentRecord)
            iml.Images.Add("", New Bitmap(frm.currentRecord.Image, 64, 64))
            Dim item As ListViewItem = ListView1.Items.Add(frm.currentRecord.Artist & Environment.NewLine & frm.currentRecord.Title, iml.Images.Count - 1)
            item.Tag = frm.currentRecord
        End If
    End Sub

    Private Sub ListView1_MouseDoubleClick(ByVal sender As Object, ByVal e As System.Windows.Forms.MouseEventArgs) Handles ListView1.MouseDoubleClick

        If ListView1.HitTest(e.Location).Item.Index > -1 Then
            Dim item As ListViewItem = ListView1.HitTest(e.Location).Item
            Dim frm As New frmRecord(DirectCast(item.Tag, record))
            If frm.ShowDialog = Windows.Forms.DialogResult.OK Then
                records(ListView1.HitTest(e.Location).Item.Index) = frm.currentRecord
                iml.Images(ListView1.HitTest(e.Location).Item.Index) = New Bitmap(frm.currentRecord.Image, 64, 64)
                ListView1.HitTest(e.Location).Item.Text = frm.currentRecord.Artist & Environment.NewLine & frm.currentRecord.Title
                ListView1.HitTest(e.Location).Item.Tag = frm.currentRecord
            End If
        End If
    End Sub

End Class

Hi espanolito, mbutler755 and .paul.,

I am hugely grateful for your replies. Been busy over the past month so I apologise for the late reply. This weekend I have some spare time and will attempt to look through the guides and code you have given me and try to understand them before implementing.

Thanks for your interest and help I really appreciate it,

Cheers,

Conor.
