CRX Viewer error code 0xbe4
Hello.
I'm trying to open a Crystal Report that was originally made in CR5 in a CRX viewer. I plan to port all reports into CRX, so I wanted to use the CRX viewer instead of the CR5 one.

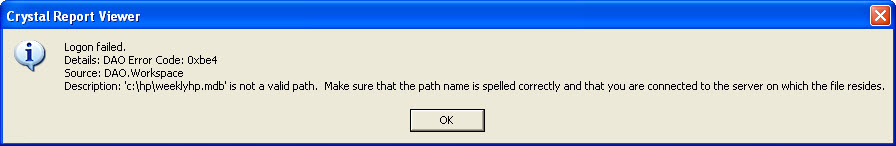

I'm getting this message when I try to open my report:
Attachment 69861
I'm using the following code to render the report:
vb Code:
Private Sub RenderReport()
'The Crystal Reports "application" to hold the CRReport and control the viewer
Dim vl_CRApp_cra As CRAXDRT.Application
'The Crystal Reports "CRReport" containing the CRReport itself and any changes
Dim vl_CRRep_cra As CRAXDRT.Report
'Initialize objects
'On Error GoTo RenderReport_Error
Stack.Push "RenderReport"
Set vl_CRApp_cra = New CRAXDRT.Application
Set vl_CRRep_cra = New CRAXDRT.Report
'Ensure that parameters are entered and file exists
If (SourceFile <> vbNullString) And (Dir(SourceFile) <> vbNullString) Then
'Open the CRReport
Set vl_CRRep_cra = vl_CRApp_cra.OpenReport(SourceFile)
vl_CRRep_cra.RecordSelectionFormula = SelectionFormula
vl_CRRep_cra.DiscardSavedData
vl_CRRep_cra.Database.SetDataSource DataSource
'Set the selection formula on the CRReport
CRReport.ReportSource = vl_CRRep_cra
RefreshReport
Else
MsgBox "Invalid parameters"
End If
Set vl_CRApp_cra = Nothing
Set vl_CRRep_cra = Nothing
CleanUp:
On Error GoTo 0
Stack.Pop
Exit Sub
RenderReport_Error:
ErrHandler "frmCRX", "Form", "Sub", "RenderReport", Erl
End Sub
My thought is that perhaps I'm not setting the report's database location properly. I assume I'm supposed to be using SetDataSource - since it makes sense that the report would want to pull info straight from a recordset.
Is there another property in which I would specify a database file name? I'm a n3wb to the CRX SDK.
Re: CRX Viewer error code 0xbe4
Here's an example about how to render a .rpt file with subreports using Crystal Reports X
The report was designed to read a MS Access database file using DAO
Code:
'General Declarations
Public CRApplication As New CRAXDRT.Application
Public CRReport As New CRAXDRT.Report
Public CRConProp As CRAXDRT.ConnectionProperty
Public CRTabla As CRAXDRT.DatabaseTable
Public CRFormula As CRAXDRT.FormulaFieldDefinition
Public CRSections As CRAXDRT.Sections
Public CRSection As CRAXDRT.Section
Public CRSubRpt As CRAXDRT.Report
Public CRSubRptObj As CRAXDRT.SubreportObject
Public CRRptObjs As CRAXDRT.ReportObjects
Public CRField As CRAXDRT.DatabaseFieldDefinition
Public ReportObject As Object
Public GTituloA As String 'Main title
Public GTituloB As String 'Subtitle
Public GSelFor As String 'Selection formula string
Public MEnt2 As Integer 'a counter
'Preview the report
GTituloA = "Main Title"
GSelFor = "{Ingresos.FechaIng} = Date(" & MHasta & ")"
Set CRReport = CRApplication.OpenReport(MyPath & "\rdi.rpt", 1)
For MEnt2 = 1 To CRReport.Database.Tables.Count
Set CRTabla = CRReport.Database.Tables(MEnt2)
Set CRConProp = CRTabla.ConnectionProperties("Database Type")
CRConProp.value = "Access/Excel (DAO)"
Set CRConProp = CRTabla.ConnectionProperties("Database Name")
CRConProp.value = MyPath & "\Ingresos.mdb"
Set CRConProp = CRTabla.ConnectionProperties("Database Type")
CRConProp.value = "Access"
Set CRConProp = CRTabla.ConnectionProperties("Session UserID")
CRConProp.value = ""
Next MEnt2
'
For MEnt2 = 1 To CRReport.FormulaFields.Count
Select Case CRReport.FormulaFields(MEnt2).name
Case "{@a}"
CRReport.FormulaFields(MEnt2).Text = "Trim(" & Chr(39) & "Company's Name" & Chr(39) & ")"
Case "{@b}"
CRReport.FormulaFields(MEnt2).Text = "Trim(" & Chr(39) & GTituloA & Chr(39) & ")"
Case "{@c}"
CRReport.FormulaFields(MEnt2).Text = "Trim(" & Chr(39) & GTituloB & Chr(39) & ")"
End Select
Next MEnt2
If Trim(GSelFor) <> "" Then
CRReport.RecordSelectionFormula = GSelFor
End If
Set CRSections = CRReport.Sections
For Each CRSection In CRSections
Set CRRptObjs = CRSection.ReportObjects
For Each ReportObject In CRRptObjs
If ReportObject.Kind = CRAXDRT.CRObjectKind.crSubreportObject Then
Set CRSubRptObj = ReportObject
Set CRSubRpt = CRSubRptObj.OpenSubreport
For MEnt2 = 1 To CRSubRpt.Database.Tables.Count
Set CRTabla = CRSubRpt.Database.Tables(MEnt2)
Set CRConProp = CRTabla.ConnectionProperties("Database Type")
CRConProp.value = "Access/Excel (DAO)"
Set CRConProp = CRTabla.ConnectionProperties("Database Name")
CRConProp.value = App.Path & "\IngresosU.Mdb"
Set CRConProp = CRTabla.ConnectionProperties("Database Type")
CRConProp.value = "Access"
Set CRConProp = CRTabla.ConnectionProperties("Session UserID")
CRConProp.value = ""
Next MEnt2
End If
Next ReportObject
Next CRSection
'Here show the form with the viewer
frmReporte.Show vbModal
Set CRSections = Nothing
Set CRSection = Nothing
Set CRSubRpt = Nothing
Set CRSubRptObj = Nothing
Set CRRptObjs = Nothing
Set ReportObject = Nothing
Now in the form with the viewer
Code:
Private Sub Form_Load()
Me.Caption = GTituloA
CRViewer1.ReportSource = CRReport
CRViewer1.Zoom 1
CRViewer1.ViewReport
End Sub
Private Sub Form_Unload(Cancel As Integer)
Set CRTabla = Nothing
Set CRConProp = Nothing
Set CRReport = Nothing
Set CRApplication = Nothing
GTituloA = ""
GTituloB = ""
GSelFor = ""
End Sub
Re: CRX Viewer error code 0xbe4
Yeah..so....updating a CR5 report to CRX helps with the programmatic interaction.....
