VB6 - Change your Toolbar Background (Color or Picture)

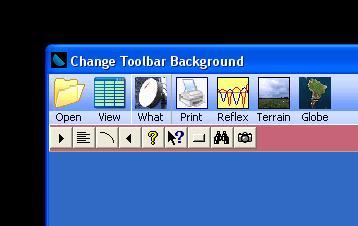

http://www.vbforums.com/attachment.p...id=44347&stc=1

With this code you can change a Toolbar backcolor (Windows Common Controls 5 or 6).
You can also use a picture (bitmap) as background, here I'll do both things.

I recommend downloading the example attached, but I'll also show the code here, I used Common Controls 6 toolbars for this example, minor changes are needed if you want to use Common Controls 5 toolbars.

IN THE FORM
- Add 2 Toolbars, change Toolbar1 style to FLAT, Toolbar2 style must remain STANDARD
- Add a Picture box and add a picture to it.
- Paste this code:

Code:

---

Option Explicit

Private Sub Form_Load()
    ApplyChanges
End Sub

Private Sub ApplyChanges()
'=========================
    Dim LngNew As Long
    'Use a picture with the FLAT TB (Toolbar1)
    LngNew = CreatePatternBrush(Picture1.Picture.Handle) 'Creates the background from a Picture Handle
    ChangeTBBack Toolbar1, LngNew, enuTB_FLAT
    'Change Backcolor of the STANDARD TB (Toolbar2)
    LngNew = CreateSolidBrush(RGB(240, 120, 120))        'Creates the background from a Color (Long)
    ChangeTBBack Toolbar2, LngNew, enuTB_STANDARD
    'Refresh Screen to see changes
    InvalidateRect 0&, 0&, False
End Sub

---

IN A MODULE

Code:

---

Option Explicit

Private Declare Function FindWindowEx Lib "user32" Alias "FindWindowExA" ( _
    ByVal hWnd1 As Long, ByVal hWnd2 As Long, _
    ByVal lpsz1 As String, ByVal lpsz2 As String) As Long
Private Declare Function DeleteObject Lib "gdi32" (ByVal hObject As Long) As Long
Private Declare Function SetClassLong Lib "user32" Alias "SetClassLongA" ( _
                ByVal hwnd As Long, ByVal nindex As Long, ByVal dwnewlong As Long) As Long
Public Declare Function InvalidateRect Lib "user32" _
                (ByVal hwnd As Long, lpRect As Long, ByVal bErase As Long) As Long
Public Declare Function CreateSolidBrush Lib "gdi32" (ByVal crColor As Long) As Long
Public Declare Function CreatePatternBrush Lib "gdi32" (ByVal hBitmap As Long) As Long

Public Enum enuTBType
    enuTB_FLAT = 1
    enuTB_STANDARD = 2
End Enum

Private Const GCL_HBRBACKGROUND = (-10)

Public Sub ChangeTBBack(TB As Object, PNewBack As Long, pType As enuTBType)
Dim lTBWnd      As Long
    Select Case pType
        Case enuTB_FLAT    'FLAT Button Style Toolbar
            'Apply directly to TB Hwnd
            DeleteObject SetClassLong(TB.hwnd, GCL_HBRBACKGROUND, PNewBack)
        Case enuTB_STANDARD 'STANDARD Button Style Toolbar
            lTBWnd = FindWindowEx(TB.hwnd, 0, "msvb_lib_toolbar", vbNullString) 'Find Hwnd first
            DeleteObject SetClassLong(lTBWnd, GCL_HBRBACKGROUND, PNewBack)      'Set new Back
    End Select
End Sub
'===========================================================================================
' If you want to use Win Common Control 5 Toolbars, use "ToolbarWindow32" instead of
' "msvb_lib_toolbar". Win Common Control 5 Toolbars can't be FLAT, they are always STANDARD,
' so use enuTB_STANDARD when you call this
'===========================================================================================

---

More info about this
- This will also work with xp styles (manifest file).
- If the picture is smaller than the toolbar the pattern will be repeated, if its too big, you will see just part of it, so I recomend to make your bmp or jpg picture the same size of the toolbar. You can also let it repeat the pattern as I did in the project attached.
- Changes will remain visible in design mode until you close VB IDE.
- If you apply this to a toolbar in your app with a given style (i.e: Flat) all the flat toolbars and the controls that contain flat toolbars with the same Comon Controls version will also be modified, (but JUST inside your app).
Example: Common Dialog Control uses a vertical toolbar (WCC version 5).

:wave:

I used your code in the project I'm working on at the moment, and one of the other programmers happen to be in my cube while I was running a test, and wanted to know if I was using a third party menu control. :lol:

:) And I was wrong when I said it doesn't work with XP styles (manifest file), now I tryied again and it works, with flat or standard toolbars, also with color or bitmaps. :D

jcis
Hi! I just try your code, it's good idea!
But I found one big bug!
When I run project, it look great. But when I stop application and return to IDE, toolbar have picture! Look attached screenshot.
How resolve this problem?
I just want to make an checkbox on the form and enable or disable picture on toolbar.

PS: sorry for very bad english.

I test your sample on VB6 SP6, W2k SP4

Quote:

---

Originally Posted by pantalone

jcis
Hi! I just try your code, it's good idea!
But I found one big bug!
When I run project, it look great. But when I stop application and return to IDE, toolbar have picture!
How resolve this problem?

---

Hi Patalone, As I said in my first post..
- Changes will remain visible in design mode until you close VB IDE.

That's not a bug, nor a problem, isn't it better to have the Toolbar Background in design mode skinned as at runtime? I think so. Anyway, you can change this by restoring original TB color before closing your App, see the following example.

Ok, you want to enable or disable picture at runtime with a checkbox,
I attached a project for that, so take a look.
For this you just have to select another brush, apply changes and call invalidateRect aPI again. Example..
In this example I used GetSysColorBrush API, so I can change the Toolbar backcolor back to original control color (vbButtonFace)

VB Code:

Option Explicit

'New API add this one with the rest, in the module, declare it Public there
Private Declare Function GetSysColorBrush Lib "user32" (ByVal nIndex As Long) As Long

Dim LngNew As Long

Private Sub Check1_Click()
    If Check1.Value = vbChecked Then
        'Apply Picture
        LngNew = CreatePatternBrush(Picture1.Picture.Handle)
    Else
        'Restore normal TB Background
        LngNew = GetSysColorBrush(vbButtonFace)
    End If
    ApplyChanges
End Sub

Private Sub ApplyChanges()
    ChangeTBBack Toolbar1, LngNew, enuTB_FLAT
    InvalidateRect 0&, 0&, False 'Refresh Screen to see changes
End Sub

Private Sub Form_QueryUnload(Cancel As Integer, UnloadMode As Integer)
    'Restore normal TB Background
    LngNew = GetSysColorBrush(vbButtonFace)
    ApplyChanges
End Sub

Check out the project attached also.

Thank you very much! :)

FYI - if you type in "change backcolor" toolbar vb6 into the Google search box, this is the very first link it returns.

Very cool! :D

Great work. Have you any idea how to get toolbarbuttons to be transparent as well as the toolbar background ?

Also not sure why the call to DeleteObject is needed ? According to the docs SetClassLong returns the previous value for the target offset (in this case GCL_HBRBACKGROUND) not a handle as required by DeleteObject. In my case the SetClassLong call returns 16 so DeleteObject fails.

Jon

Is somebody have method how to change menu background like toolbar in this sample?

Quote:

---

Originally Posted by pantalone

Is somebody have method how to change menu background like toolbar in this sample?

---

Do you mean change the menu backcolor?

No! I know how to change the menu background color. I need use a picture as background.

I found the bug in the sample with toolbar: if form have one more toolbar same type then this toolbar change background too! How we can select toolbar for apply background?

PS: sorry for bad english.

Quote:

---

Originally Posted by pantalone

I found the bug in the sample with toolbar: if form have one more toolbar same type then this toolbar change background too! How we can select toolbar for apply background?
PS: sorry for bad english.

---

I know, no solution for that, I already said in my first post:
- If you apply this to a toolbar in your app with a given style (i.e: Flat) all the flat toolbars and the controls that contain flat toolbars with the same Comon Controls version will also be modified, (but JUST inside your app).

Quote:

---

Originally Posted by jonrmorgan

Have you any idea how to get toolbarbuttons to be transparent as well as the toolbar background ?

---

Just one way, use a flat toolbar (windows common controls 6, not 5), and change style to flat.

Quote:

---

Originally Posted by jcis

I know, no solution for that, I already said in my first post

---

Sorry, I very unattentive :D

jcis, you are the man and the one :thumb: :cool:

i am searching for such a code from along time ago so thanx man..

there is a small prpblem i have herem i hope its sol. will be easy..
when i tried to apply this code on a MDI form, i doesn't work at all, so please test it on it, and all developers here please, and tell me if the code may be developed to work with such forms..

best wishes :wave:

Quote:

---

there is a small problem i have herem i hope its sol. will be easy..
when i tried to apply this code on a MDI form, i doesn't work at all, so please test it on it, and all developers here please, and tell me if the code may be developed to work with such forms..

---

There is no difference, you can change the picture or backcolor of Toolbars in MDIForms and MDIChilds the same way. See the example attached, in this example I used the same picturebox in both forms, it's in the MDI Form.

jcis,

I'm hoping you may be able to help me out. I'm using VB6, and the Common Controls 5 toolbar since the standard v6 one doesn't give XP styles with a manifest. Unfortunately, although I've changed "msvb_lib_toolbar" to "ToolbarWindow32", I can't get the code above to change the background colour of the v5 toolbar.

I took your example program, added a v5 toolbar, duplicated the ChangeTBBack subroutine to ChangeTBBack5 with "ToolbarWindow32" changed. It's giving the two example v6 toolbars in pre-XP style with the background picture and colour, and the v5 toolbar in XP style with its fixed standard colour (which itself isn't quite as light as the standard XP background).

Am I missing something obvious or does it not work on Common Controls v5, and if not, since you've mentioned it working with a manifest file, how else (other than using v5) do you get a toolbar to show in XP style?

@[CF]Gareth

You're right, so it doesn't work when the XP style is applied to the toolbar, I had tested just using a Manifest file but I never tested changing the toolbar style also like for ex. is explained in This Article, I think that is what you're doing, and it seems the backcolor or picture can't be changed when doing that. :(

That article you've linked to is exactly the one I found when trying to work out how to use XP styles on a toolbar. Dammit, I hoped I'd missed something.

Thanks for the reply.

jcis,

I just found your post and it's fantastic! Is there a way to change the color of the toolbar from the blue you have to another color?

Thanks!

Quote:

---

Originally Posted by zong

jcis,

I just found your post and it's fantastic! Is there a way to change the color of the toolbar from the blue you have to another color?

Thanks!

---

There is a PictureBox in the form with a picture inside, that's what the toolbar will have as background, you can add any Picture there.

In the main Post see where it saids More info about this, 2nd paragraph.

I need to change the red color to another color but the color does not seem to go away. how do it do this ?

Assign Red - Green - Blue in this line:

Code:

---

LngNew = CreateSolidBrush(RGB(240, 120, 120))

---

Examples:
Yellow = RGB(255, 255, 0)
Green = RGB(0, 255, 0)

Hi

Can you write similar thing for Visual Basic .NET (1.framework)??

I'm currently working on a soft that cannot be updated to 2. framework and therefore im stuck with ToolBar control.

hey
i've tried to use this in my project. The main toolbar is perfect. the only problem is that in this same project i have others forms with toolbars and these ones have to have a different image. How can i do this? all the toolbars get the image of the first one, or can i change the color of the back like you did with the standard way but in the flat style in the same project?
please help!





:duck:

unable to make it work with Common Controls 5 :confused:

how can i make the tool bar transparent

Quote:

---

Originally Posted by jcis

:) And I was wrong when I said it doesn't work with XP styles (manifest file), now I tryied again and it works, with flat or standard toolbars, also with color or bitmaps. :D

---

can i make the toolbar have gradient just like the coolbar with xp style applied? this could make it look transparent.
