Thread: Resize Dialogs in vb6ide.dll

  1. #1

    Thread Starter
    New Member
    Join Date
    Aug 2015
    Posts
    9

    Resize Dialogs in vb6ide.dll

    Hi

    Has anyone used ResourceHacker to make the vb6 file open/save dialogs bigger? They look so small on these higher res monitors!

    If so, would you be able to share your new design so I can mimic your changes. ISTR this being available somewhere on the web many years ago but can't locate it now.

    Many thx IA

    s
    Last edited by SWo777; Feb 6th, 2019 at 04:25 AM. Reason: clarification

  2. #2
    PowerPoster
    Join Date
    Jul 2010
    Location
    NYC
    Posts
    2,523

    Re: Resize Dialogs in vb6ide.dll

    That's a good idea but the open/save dialogs don't seem to be located in either vb6ide.dll or vb6.exe.

    It was nice to make the References dialog bigger though:


    Resource Hacker is still maintained, updated very recently, and freeware: http://www.angusj.com/resourcehacker/

    It opens the dialogs just as they appear, you can resize and drag things around just like in VB. If you can make VB forms you can use ResHacker. Just modify the forms to your liking, click the green arrow for 'Compile Script', then Save. ResHacker makes a copy of the original before modifying it, but always safer to make your own backup just in case.

  3. #3

    Thread Starter
    New Member
    Join Date
    Aug 2015
    Posts
    9

    Re: Resize Dialogs in vb6ide.dll

    Many thx for this. Shame about the open/save dialogs though.

  4. #4
    PowerPoster Arnoutdv's Avatar
    Join Date
    Oct 2013
    Posts
    3,820

    Re: Resize Dialogs in vb6ide.dll

    The vbAdvance Add-In should just do this all:
    http://vb.mvps.org/tools/vbAdvance/

  5. #5
    VB-aholic & Lovin' It LaVolpe's Avatar
    Join Date
    Oct 2007
    Location
    Beside Waldo
    Posts
    18,993

    Re: Resize Dialogs in vb6ide.dll

    Quote Originally Posted by SWo777
    Has anyone used ResourceHacker to make the vb6 file open/save dialogs bigger? They look so small on these higher res monitors!
    Which dialogs are you talking about? Those that prompt you to open/save a project or those related to the common dialog that you use in code? For the project-related ones, I believe if vb6 is manifested to be DPI-aware, the dialogs are larger. However, not all graphics in the dialog are scaled properly.
    Insomnia is just a byproduct of, "It can't be done"

    Classics Enthusiast? Here's my 1969 Mustang Mach I Fastback. Her sister '67 Coupe has been adopted

    Newbie? Novice? Bored? Spend a few minutes browsing the FAQ section of the forum.
    Read the HitchHiker's Guide to Getting Help on the Forums.
    Here is the list of TAGs you can use to format your posts
    Here are VB6 Help Files online


    {Alpha Image Control} {Memory Leak FAQ} {Unicode Open/Save Dialog} {Resource Image Viewer/Extractor}
    {VB and DPI Tutorial} {Manifest Creator} {UserControl Button Template} {stdPicture Render Usage}

  6. #6

    Thread Starter
    New Member
    Join Date
    Aug 2015
    Posts
    9

    Re: Resize Dialogs in vb6ide.dll

    Hi Thx for responding ... yes it is the "in-ide" open/save file dialogs I was referring to. Could you point me to a link wrt "manifesting vb6 to be dpi-aware"? (sorry if I have used the terminology incorrectly!)

    Many thx

    s

  7. #7

    Thread Starter
    New Member
    Join Date
    Aug 2015
    Posts
    9

    Re: Resize Dialogs in vb6ide.dll

    Hi Thx for responding ... yes it is the "in-ide" open/save file dialogs I was referring to. Could you point me to a link wrt "manifesting vb6 to be dpi-aware"? (sorry if I have used the terminology incorrectly!)

    Many thx

    s

  8. #8

    Thread Starter
    New Member
    Join Date
    Aug 2015
    Posts
    9

    Re: Resize Dialogs in vb6ide.dll

    Thx. I'll have a look at that.

  9. #9
    VB-aholic & Lovin' It LaVolpe's Avatar
    Join Date
    Oct 2007
    Location
    Beside Waldo
    Posts
    18,993

    Re: Resize Dialogs in vb6ide.dll

    Quote Originally Posted by SWo777 View Post
    Hi Thx for responding ... yes it is the "in-ide" open/save file dialogs I was referring to. Could you point me to a link wrt "manifesting vb6 to be dpi-aware"? (sorry if I have used the terminology incorrectly!)

    Many thx

    s
    A project I created can be found in the forums, here. Not trying to push that project, but it has posts related to manifesting that could be of interest, specifically, in your case, jump to post #3. What isn't mentioned in that post is that sometimes, the only way to get VB to recognize an external manifest if all other attempts fail is to "touch" the vb6.exe, making its date modified change. There is another way to add a manifest by using apps like "Resource Hacker" that will go an actually edit/modify your vb6.exe file -- however, I choose not to mess with rewriting exes if a less permanent fix is available. And that less permanent fix is an external manifest file.

    Do note, that there are annoyances when the IDE is manifested. Most notably is the loss of the color palette in the properties sheet. You still have the system colors, but no standard palette colors are drawn. However, VB does offer palette selection another way, via its IDE menubar: Edit | Color Palette
    Insomnia is just a byproduct of, "It can't be done"

    Classics Enthusiast? Here's my 1969 Mustang Mach I Fastback. Her sister '67 Coupe has been adopted

    Newbie? Novice? Bored? Spend a few minutes browsing the FAQ section of the forum.
    Read the HitchHiker's Guide to Getting Help on the Forums.
    Here is the list of TAGs you can use to format your posts
    Here are VB6 Help Files online


    {Alpha Image Control} {Memory Leak FAQ} {Unicode Open/Save Dialog} {Resource Image Viewer/Extractor}
    {VB and DPI Tutorial} {Manifest Creator} {UserControl Button Template} {stdPicture Render Usage}

  10. #10

    Thread Starter
    New Member
    Join Date
    Aug 2015
    Posts
    9

    Re: Resize Dialogs in vb6ide.dll

    Many thx once again.

  11. #11

  12. #12
    VB-aholic & Lovin' It LaVolpe's Avatar
    Join Date
    Oct 2007
    Location
    Beside Waldo
    Posts
    18,993

    Re: Resize Dialogs in vb6ide.dll

    Quote Originally Posted by fafalone View Post
    If I made VB6 dpi (un)aware, all that happens is all the toolbar buttons and dialog icons get insufferably tiny, but nothing is made larger. Are others getting a different outcome?
    The size of dialog is larger. I think that was the gist of this thread. But, yep, @ 200 DPI, the icons are so tiny.
    Insomnia is just a byproduct of, "It can't be done"

    Classics Enthusiast? Here's my 1969 Mustang Mach I Fastback. Her sister '67 Coupe has been adopted

    Newbie? Novice? Bored? Spend a few minutes browsing the FAQ section of the forum.
    Read the HitchHiker's Guide to Getting Help on the Forums.
    Here is the list of TAGs you can use to format your posts
    Here are VB6 Help Files online


    {Alpha Image Control} {Memory Leak FAQ} {Unicode Open/Save Dialog} {Resource Image Viewer/Extractor}
    {VB and DPI Tutorial} {Manifest Creator} {UserControl Button Template} {stdPicture Render Usage}

  13. #13
    PowerPoster
    Join Date
    Jul 2010
    Location
    NYC
    Posts
    2,523

    Re: Resize Dialogs in vb6ide.dll

    Only makes it larger by about the height of a 16x16 icon for me, and only vertically

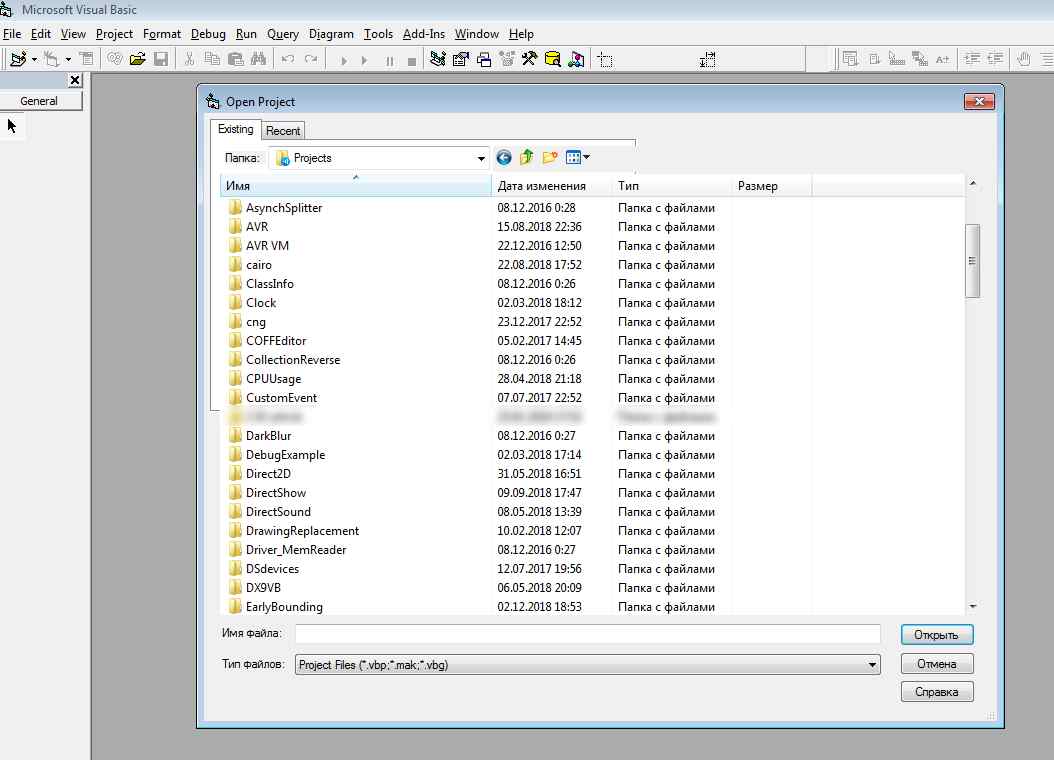

    But the bigger problem seems to be, that open project window isn't any standard dialog call I've ever heard of, so where's its dialog resource, or does it just not have one? Does vbAdvance make it sizable somehow too, or just the actual common dialogs in various parts of the IDE?

  14. #14
    VB-aholic & Lovin' It LaVolpe's Avatar
    Join Date
    Oct 2007
    Location
    Beside Waldo
    Posts
    18,993

    Re: Resize Dialogs in vb6ide.dll

    When I said the dialogs resize when DPI aware... Below is dialog @ 150% DPI and to the right, typical 100% DPI.

    Name:  vbref.jpg
Views: 119
Size:  30.9 KB
    Insomnia is just a byproduct of, "It can't be done"

    Classics Enthusiast? Here's my 1969 Mustang Mach I Fastback. Her sister '67 Coupe has been adopted

    Newbie? Novice? Bored? Spend a few minutes browsing the FAQ section of the forum.
    Read the HitchHiker's Guide to Getting Help on the Forums.
    Here is the list of TAGs you can use to format your posts
    Here are VB6 Help Files online


    {Alpha Image Control} {Memory Leak FAQ} {Unicode Open/Save Dialog} {Resource Image Viewer/Extractor}
    {VB and DPI Tutorial} {Manifest Creator} {UserControl Button Template} {stdPicture Render Usage}

  15. #15
