Thread: Synched RichTextBoxes, Numbered, 3 Jan 2018 - VB.NET

  1. #1

    Thread Starter
    Addicted Member Peter Porter's Avatar
    Join Date
    Jul 2013
    Posts
    193

    Synched RichTextBoxes, Numbered, 3 Jan 2018 - VB.NET

    I've been playing with this all day, and I finally got it work perfectly. NickThissen's post on synchronizing richtextboxes got me started, but I slimmed it down, adding numbered lines.

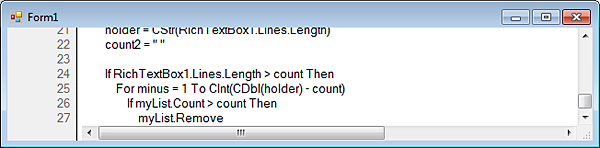

    Name:  editor.png
Views: 483
Size:  38.3 KB

    There are no editing functions except for pasting text into it by pressing Ctrl-P besides typing.

    RichTextBox1's backcolor is set to "Control" in properties, borderstyle "None", scrollbars "None", readonly "True", docked "Left", with a width of 70.

    RichTextbox2's backcolor is "Window", borderstyle "None", wordwrap "False", docked "Fill".

    Enjoy!

    Code:
    Public Class Form1

        Const WM_USER As Integer = &H400
        Const EM_GETSCROLLPOS As Integer = WM_USER + 221
        Const EM_SETSCROLLPOS As Integer = WM_USER + 222
        Declare Function SendMessage Lib "user32.dll" Alias "SendMessageW" (ByVal hWnd As IntPtr, ByVal msg As Integer, ByVal wParam As Integer, ByRef lParam As Point) As Integer


        Private Sub Form1_Load_1(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load

            RichTextBox1.SelectionAlignment = HorizontalAlignment.Right
            RichTextBox1.Text = "1"
            RichTextBox1.Enabled = False
        End Sub


        Private Sub RichTextBox2_KeyUp(ByVal sender As Object, ByVal e As System.Windows.Forms.KeyEventArgs) Handles RichTextBox2.KeyUp
            If (e.KeyCode = Keys.P AndAlso e.Modifiers = Keys.Control) Then
                RichTextBox2.Text = Clipboard.GetText()
                RichTextBox2.SelectAll()
                RichTextBox2.SelectionFont = New Font("Microsoft Sans Serif", 10, FontStyle.Regular)
                RichTextBox1.SelectAll()
                RichTextBox1.SelectionFont = New Font("Microsoft Sans Serif", 10, FontStyle.Regular)
            End If
        End Sub


        Private Sub RichTextBox2_TextChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles RichTextBox2.TextChanged
            Dim count As Integer
            Dim count2 As String
            Dim myList As List(Of String) = RichTextBox1.Lines.ToList()
            Dim minus As Integer
            Dim holder As String

            count = RichTextBox2.Lines.Length
            holder = CStr(RichTextBox1.Lines.Length)
            count2 = " "

            If RichTextBox1.Lines.Length > count Then
                For minus = 1 To CInt(CDbl(holder) - count)
                    If myList.Count > count Then
                        myList.RemoveAt(myList.Count - 1)
                        RichTextBox1.Lines = myList.ToArray()
                        RichTextBox1.Refresh()
                    End If
                Next
            Else
                If count = RichTextBox1.Lines.Length Then
                    count = RichTextBox1.Lines.Length
                End If
            End If

            If count > RichTextBox1.Lines.Length + 1 Then
                count2 = CStr(count - RichTextBox1.Lines.Length)
                For minus = 1 To CInt(count2)
                    RichTextBox1.AppendText(Environment.NewLine & minus + count - CDbl(count2))
                Next
            End If

            If RichTextBox1.Text.Length = 0 Then
                RichTextBox1.Text = "1"
            Else
            End If

            If RichTextBox1.Lines.Length < count Then
                RichTextBox1.AppendText(Environment.NewLine & count)
            Else
            End If

            If RichTextBox1.Text.Length = 2 Then
                RichTextBox1.AppendText("2")
            Else
            End If

            Dim pt2 As Point
            SendMessage(RichTextBox2.Handle, EM_GETSCROLLPOS, 0, pt2)
            SendMessage(RichTextBox1.Handle, EM_SETSCROLLPOS, 0, New Point(0, pt2.Y))
        End Sub


        Private Sub RichTextBox2_VScroll(ByVal sender As Object, ByVal e As System.EventArgs) Handles RichTextBox2.VScroll
            Dim pt2 As Point
            SendMessage(RichTextBox2.Handle, EM_GETSCROLLPOS, 0, pt2)
            SendMessage(RichTextBox1.Handle, EM_SETSCROLLPOS, 0, New Point(0, pt2.Y))
        End Sub


        Private Sub Form1_Resize(ByVal sender As Object, ByVal e As System.EventArgs) Handles Me.Resize
            Dim pt2 As Point
            SendMessage(RichTextBox2.Handle, EM_GETSCROLLPOS, 0, pt2)
            SendMessage(RichTextBox1.Handle, EM_SETSCROLLPOS, 0, New Point(0, pt2.Y))
        End Sub


    End Class
    Coming feature...
    Document map column, for fast navigation of large documents in a richtextbox, by hovering over an area of a captured thumbnail of it like in Notepad++.

    The zipped project below uses an image divider separating the richtextboxes.
    Attached Files Attached Files
    Last edited by Peter Porter; Jan 6th, 2018 at 07:34 PM. Reason: Perfected, shortened, simplified code.

  2. #2

    Thread Starter
    Addicted Member Peter Porter's Avatar
    Join Date
    Jul 2013
    Posts
    193

    Re: Numbered Richtextbox lines

    Edited this comment to remove old code.
    Last edited by Peter Porter; Jan 3rd, 2018 at 10:14 AM.
